Venue Spec



Sound PA

Main LR 2 x Flown Dynacord C12.2 Sub 1 x JBL SRX728S Dual 18” Sub build-in to the stage. Main LR Amp 1xYamaha P3500S with DBX 220i Driverack for EQ, Crossover and time aligning. Sub Amp. 1x Lab Gruppen IPD-2400 with JBL SRX728S preset. Frequency response is trimmed flat within +/- 3db in the main listening area. Mixer Allen Heath ZED-14. 14 channel mixer – 6

Lighting Stage DMX Lights

● 6 x Varytec Sidus X4 LED RGBW spots pointing to the scene
● 1 x Fixed Red LED Wash PAR pointing to the backwall.
● 1 x Fixed Green LED Wash PAR pointing to the backwall.
● 1 x Fixed Blue LED Wash PAR pointing to the backwall.
● 1 x Fixed Wed LED Wash PAR pointing to the backwall.

Smoke Machine
● Stairville AFH-600 DMX Hazer (Auto mode)

Lighting DMX Control
● Botex DC1216 DMX controller.

The DMX cable-connection is accessible so eg. a PC controller can be connected.

DMX Patch

Fixture ID Fixture Mode Pointing DMX Address
1 (Audience Left) Stairville Sidus X4 10-ch To stage 1
2 Stairville Sidus X4 10-ch To stage 17
3 Stairville Sidus X4 10-ch To stage 33
4 Stairville Sidus X4 10-ch To stage 49
5 Stairville Sidus X4 10-ch To stage 65
6 (Audience Right) Stairville Sidus X4 10-ch To stage 81
7 Fixed Red Wash 1-ch Backwall 178
8 Fixed Green Wash 1-ch Backwall 179
9 Fixed Blue Wash 1-ch Backwall 180
10 Fixed White Wash 1-ch Backwall 181

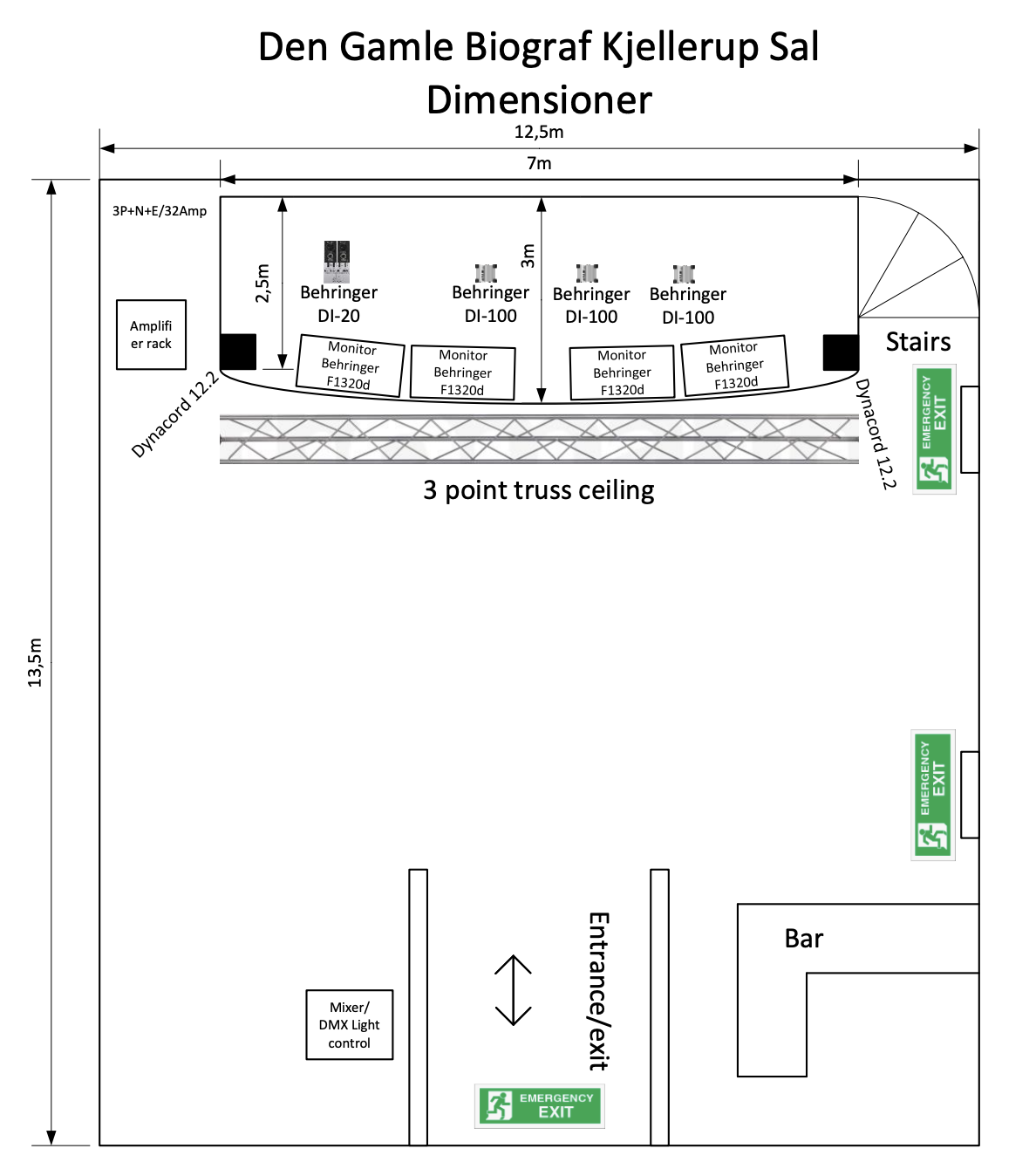

Venue
● Concert room dimensions: 11/12.5m wide – 9/13.5 m deep – 5.8m high

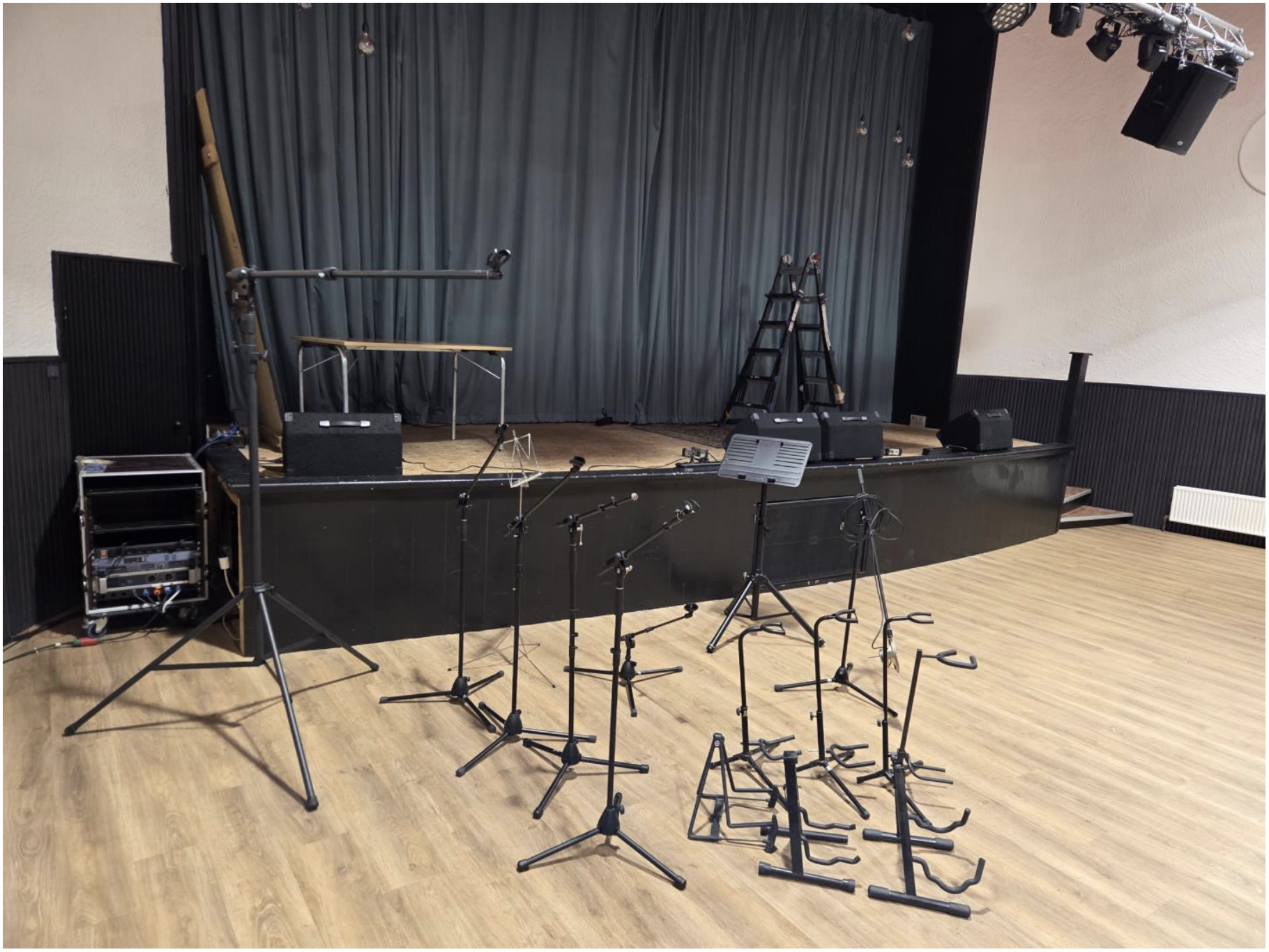

Stage
● Stage dimensions: 7m wide x 2.5/3m deep.
● Stage raised 90cm above audience level.
